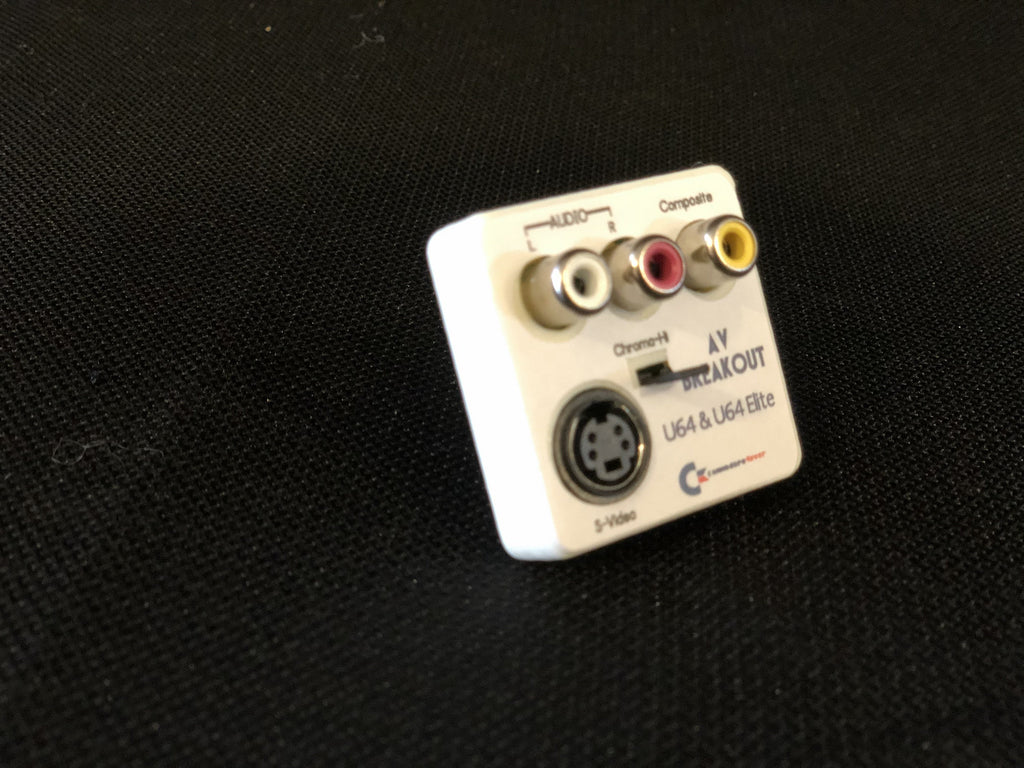

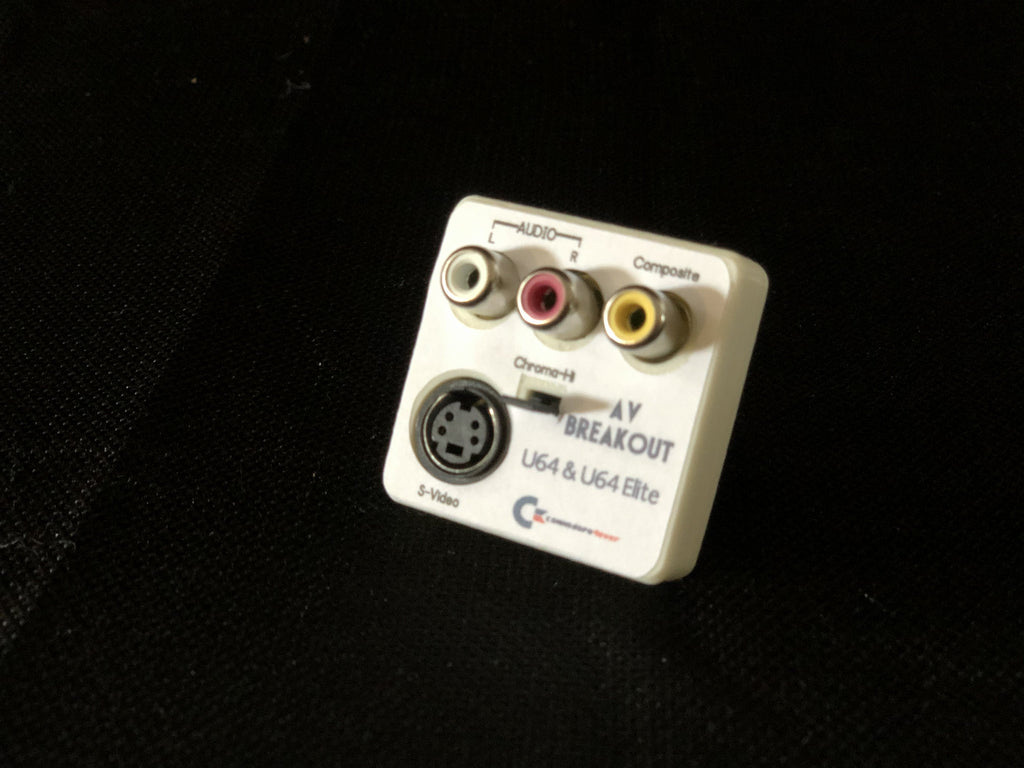

Ultimate 64 and Ultimate 64 Elite A/V Breakout

The Ultimate 64 and the Elite are excellent products and are as complete of a system as one can get.  As a request I designed these AV breakouts to work with the slightly different from and original 64 av pin out.

This device gives the U64 and U64 Elite another couple options for connecting to audio and video devices

Pin Signal

• 1 Luma
• 2 GND
• 3 Audio Out Left
• 4 Composite
• 5 Audio Out Right
• 6 Chroma
• 7 Not Used
• 8 Not Used

•  Audio Out Left
•  Audio Out Right
• Video Out Composite

S-Video Out
